 1926 Model TT Restoration: Engine/Trans Rebuild
Author Message
Site Supporter
User avatar
Site Supporter

Location: Tacoma
Joined: Sat May 4, 2013
Posts: 5308
usrifle wrote:
Arisaka wrote:
usrifle wrote:
Those gears and the complexity are amazing considering how old the truck is. Great pics and explanation of the whole project my friend, how many Golden's can ride in it?

The cab is pretty tight. I figure I can take one big golden and one puppy. So, a 1.5 golden capacity


No room in the back with the tow rig?

Nope. That space is for you. The Goldens ride up front. Lol


Tue Jul 26, 2022 8:26 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: South Seattle
Joined: Thu May 2, 2013
Posts: 9890
Real Name: Steve
:ROFLMAO:


Tue Jul 26, 2022 8:31 pm
Profile
Online
Site Supporter
User avatar
Site Supporter

Location: RENTON
Joined: Fri Mar 25, 2011
Posts: 18235
Real Name: John
Arisaka wrote:
usrifle wrote:
Arisaka wrote:
usrifle wrote:
Those gears and the complexity are amazing considering how old the truck is. Great pics and explanation of the whole project my friend, how many Golden's can ride in it?

The cab is pretty tight. I figure I can take one big golden and one puppy. So, a 1.5 golden capacity


No room in the back with the tow rig?

Nope. That space is for you. The Goldens ride up front. Lol


icon_eek :ROFLMAO:

_________________
Mr. Q wrote: so basically, if you have to smoke some asshole, make sure they become fertilizer and then Bounce? got it.

Guntrader wrote: Huh, maybe I was an asshole.

NRA Member/RSO
SAF 5 Year Donor
GOA Member


Tue Jul 26, 2022 8:54 pm
Profile
User avatar

Location: Snohomish Co
Joined: Thu Sep 13, 2018
Posts: 1095
https://portland.craigslist.org/mlt/cto ... 20919.html

If anyone is enthused by this thread and looking for a REALLY rare heavier duty project like this, this seems pretty cool. There are very few of this make left (probably less than dozens)and this ran 10 years ago according to the add.

The downside is parts are unubtainium, so you'll need to make your own


Tue Aug 02, 2022 8:30 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: Tacoma
Joined: Sat May 4, 2013
Posts: 5308
My buddy has been working on my driveshaft assembly. It requires matching work, and he has access to a lathe and end mill.

Here is a standard Model TT driveshaft. The driveshaft is the skinny one. The driveshaft rotates inside the non-rotating torque tube. The fatter tube is the torque tube.

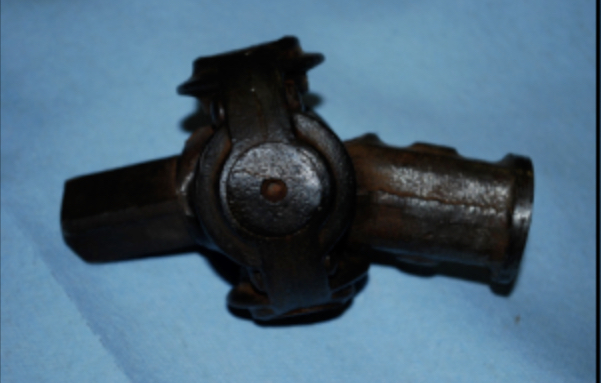

The forward end of the drive shaft is squared off and fits into a universal joint, which in turn connects to the transmission. Here is a look at those parts

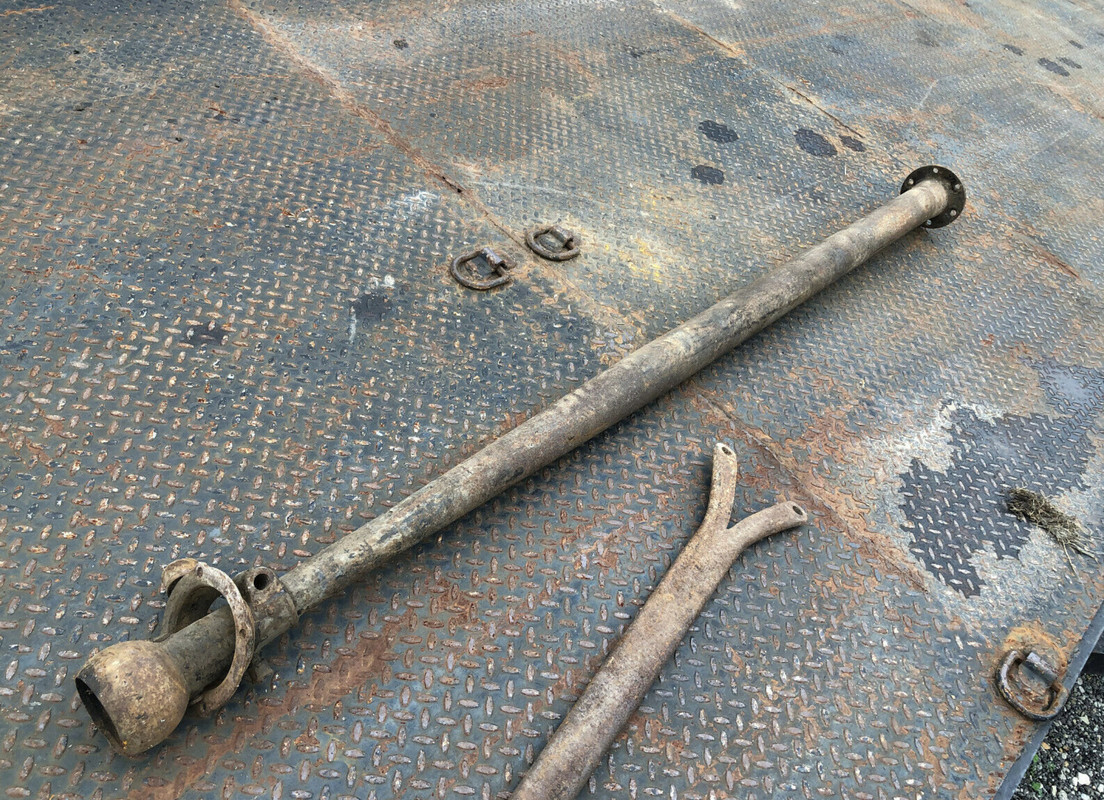

Since I have a 12” long Warford auxiliary transmission installed behind the Ford transmission, the driveshaft and torque tube have to be shortened 12 inches. First up is the torque tube. Here is a full length torque tube



Here is a torque tube shortened 12 inches, by cutting off the end nearest to the differential. Those longer parts are radius rods that triangulate and stabilize the rear axle. They need to be shortened too.

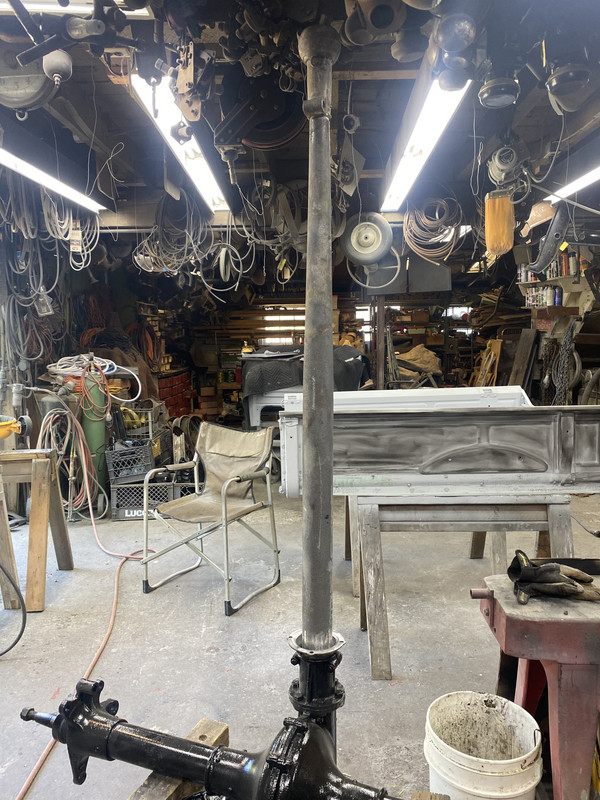

The shortened torque tube then slides into a collar at the differential. Here it is test-fit in place.



Finally, a bushing is pressed into the forward end of the torque tube. The driveshaft rotates inside this bushing. You have to drill a hole in the side of the bushing, where it lines up with an external grease cup. That way the driveshaft receives grease at the bushing.

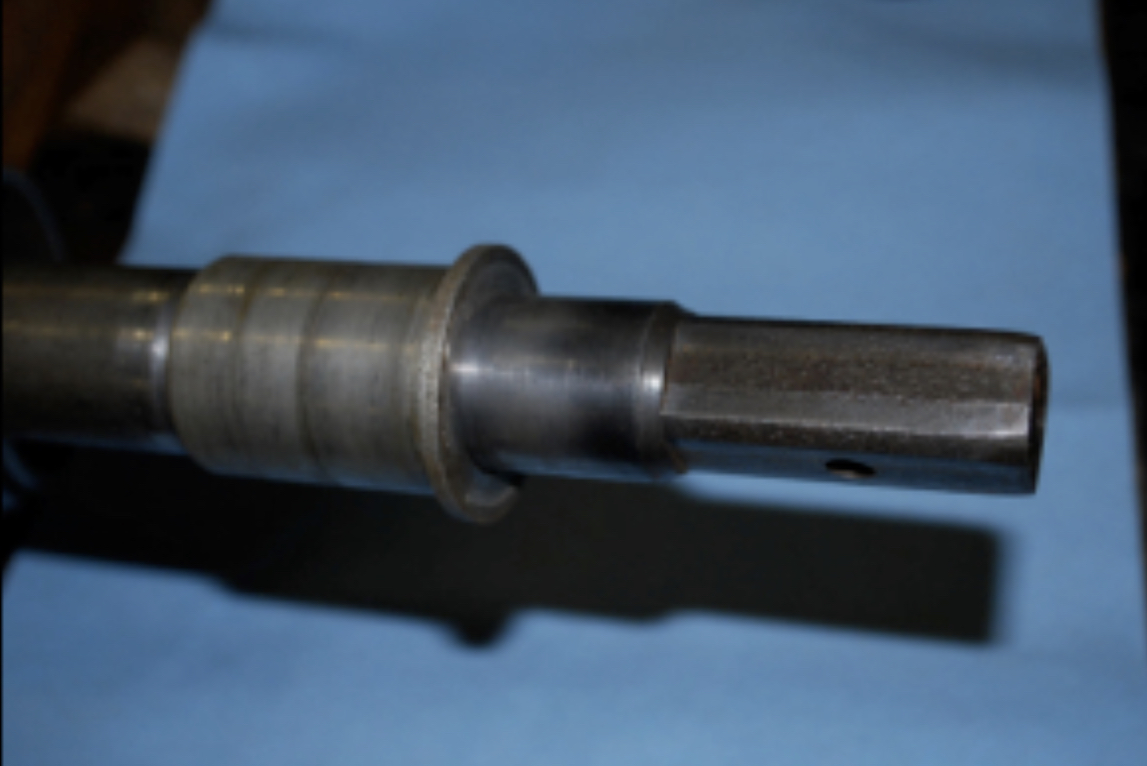

Next is the drive shaft. The drive shaft is cut off on its forward end, nearest the transmission. Then the flats have to be re-machined in the cut end to square it off, so it goes into the universal joint.



The other end of the driveshaft is splined, as is the worm gear in the differential. They just butt up, and this coupler holds them together

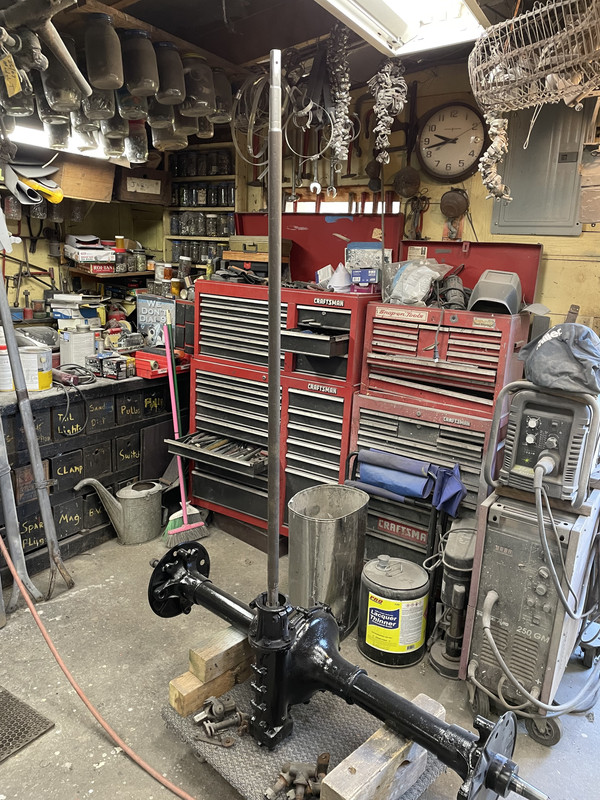

Here is the driveshaft test-fit to the differential



Next up is shortening the radius rods and then rolling the rear axle under the truck


Thu Aug 04, 2022 5:19 pm
Profile
Site Supporter
User avatar
Site Supporter

Location: South Seattle
Joined: Thu May 2, 2013
Posts: 9890
Real Name: Steve
Sweet! :thumbsup2:


Thu Aug 04, 2022 10:52 pm
